RASTAR Vacuum toilet
The RASTAR System is a simplified version of the Trainvac Compact, with all the same functionality and highest level of train compatibility. The system is designed to enable rapid replacement of the complete toilet assembly in the event of corrective or preventative maintenance needs. The Trainvac Compact has been proven to perform excellently in every way, including reliability and availability. The RASTAR System features fully proven and validated system components. It complies with the latest standards and requirements.
Know This First
- More powerful operation, less risk of blockages
- Integrated design
- Conforms to EuroSpec, IP65/67 rated
- Improved accessibility and maintainability
- Fully proven and validated functional system components
- Condition Based Maintenance (CBM) enabled
- Reduced flush water volume
- Ethernet and CAN communication
- Data logging with real-time clock
- Fire protection in accordance with EN 45545
- Shock and vibration in accordance with EN 61373
- Electronics in accordance with EN 50155
- Identification and traceability of all functional components
Rastar System
The RASTAR System is a simplified version of the Trainvac Compact, with all the same functionality and highest level of train compatibility. The system is designed to enable rapid replacement of the complete toilet assembly in the event of corrective or preventative maintenance needs. Saving space as well as resources, this microprocessor controlled, all-in-one unit features a local vacuum system, removing the need for a vacuum-proof waste water tank.
System Design
Super efficient at just 0,5 l water per flush and engineered to ensure optimum performance using small tank volumes, the Trainvac Compact is an excellent and economical stand-alone solution. Its integrated fault detection and troubleshooting as well as super-easy installation and maintenance make it a worry-free system: The entire unit can be replaced within 10-15 minutes.

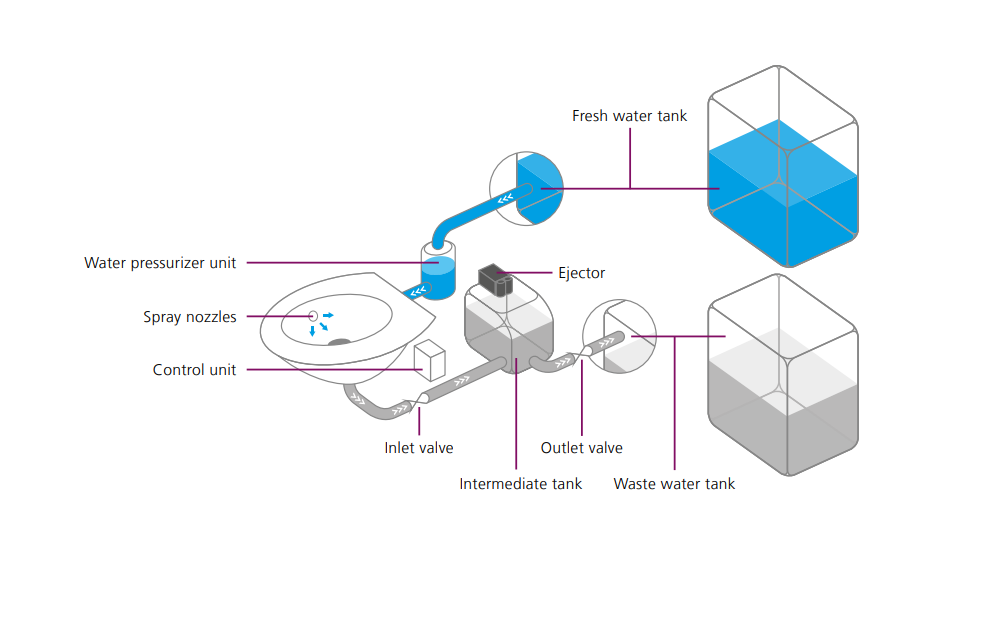

How it Works
- After flush activation a vacuum
is created in intermediate tank - The bowl is rinsed
- Bowl contents are discharged
into intermediate tank - Pressure is increased to transport
contents of intermediate tank
to waste water tank.
